How To Install Wainscoting

Elevate your entryway or staircase to new heights with a stained wood wall application. With the easy installment of wood wainscoting, give your space a full remodel-quality makeover at a fraction of the cost and effort. Here’s how to install wainscoting in 10 easy steps.

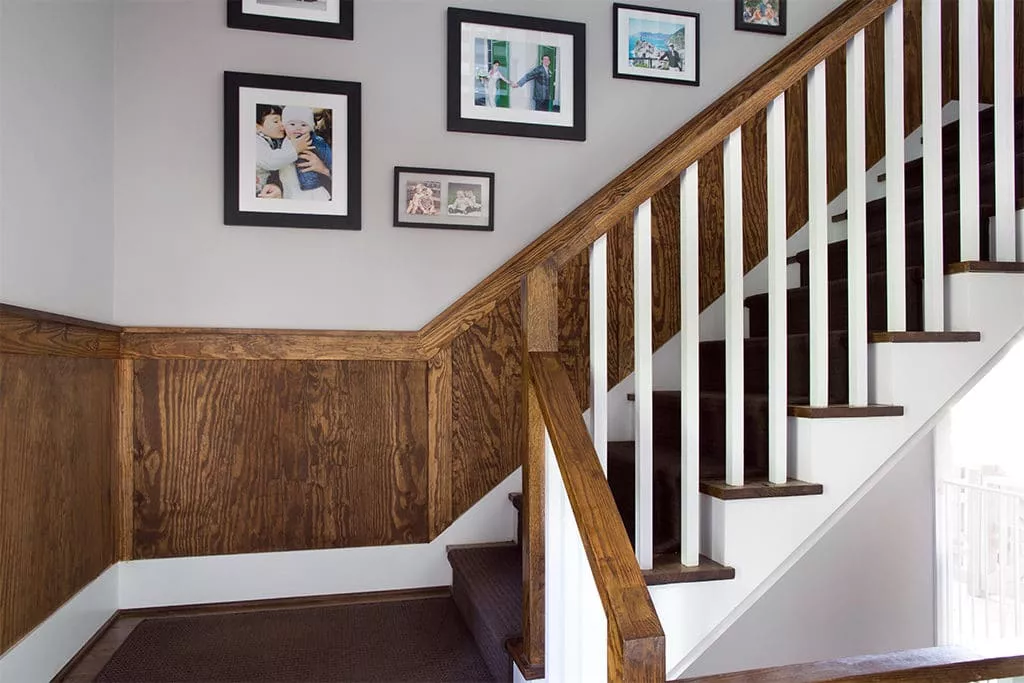

Wooden stairs on the inside of a house

Install Wainscoting_Finished Product image

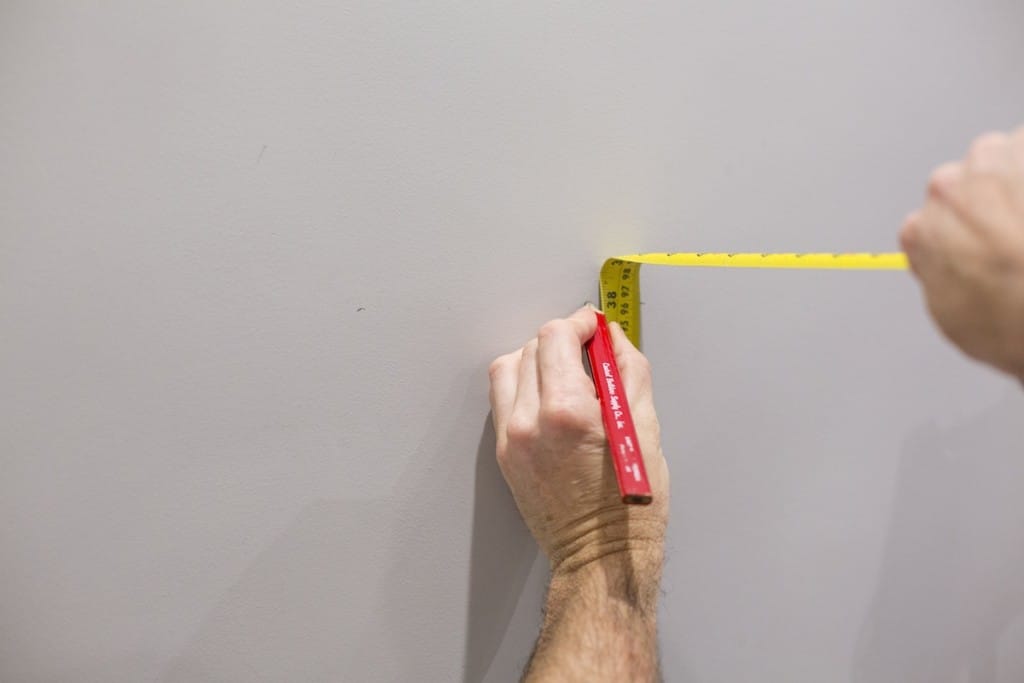

Step 1: Establish Desired Height

Protect the work area by covering nearby floor surfaces with drop cloths. Determine and mark the overall finished height of wainscoting using a level. Three feet is the height most commonly used by designers and builders to add maximum visual impact.

Install Wainscoting_Step 1 image

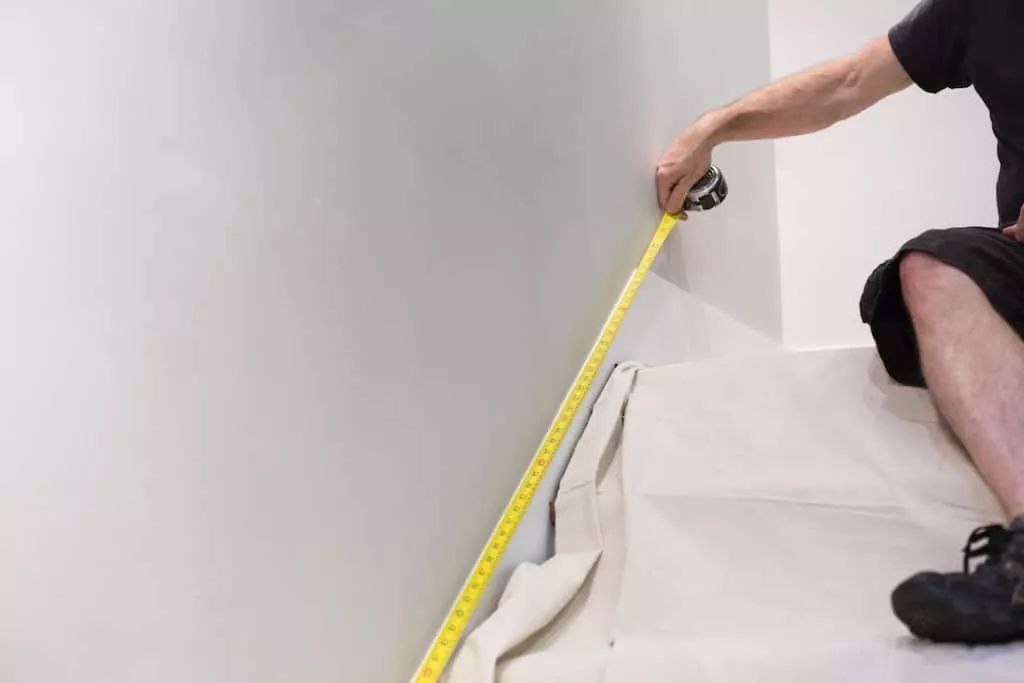

Step 2: Calculate Vertical Span of Staircase

Measure the full length of the staircase to calculate the spacing between 1’x3’ vertical boards. Vertical boards are used for decorative framing and finishing and should be placed equidistance apart for visual balance. A distance between 18” and 36” works best.

Install Wainscoting_Step 2 image

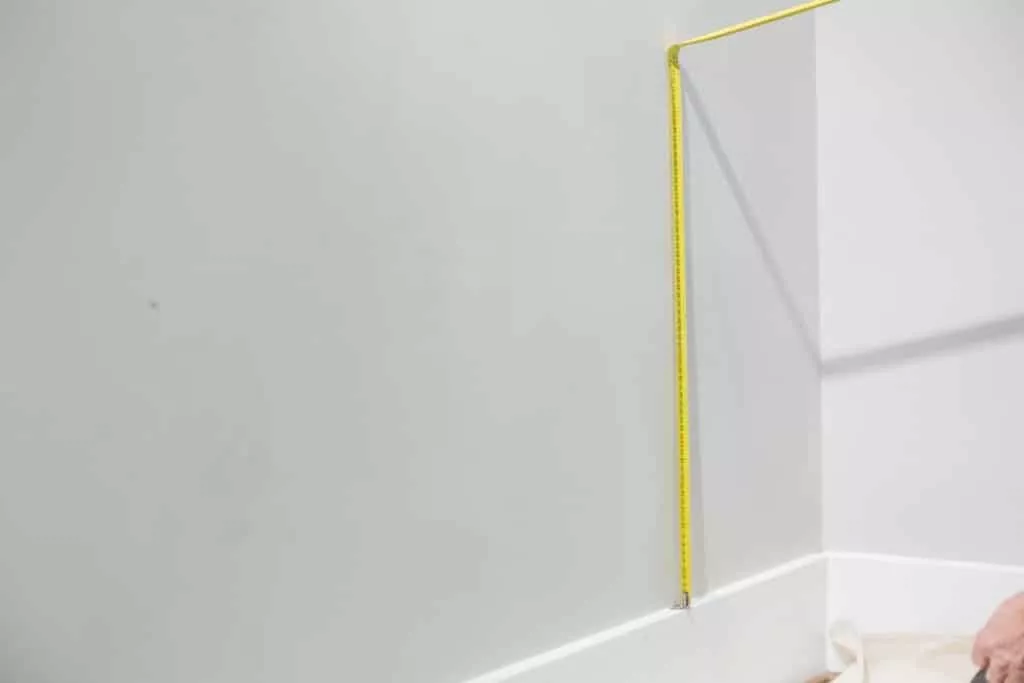

Step 3: Determine Overall Height and Width

Determine the overall height and width needed for the back panel, which is the main piece of wood you’ll attach the horizontal and vertical trim pieces to.

Install Wainscoting_Step 3 image

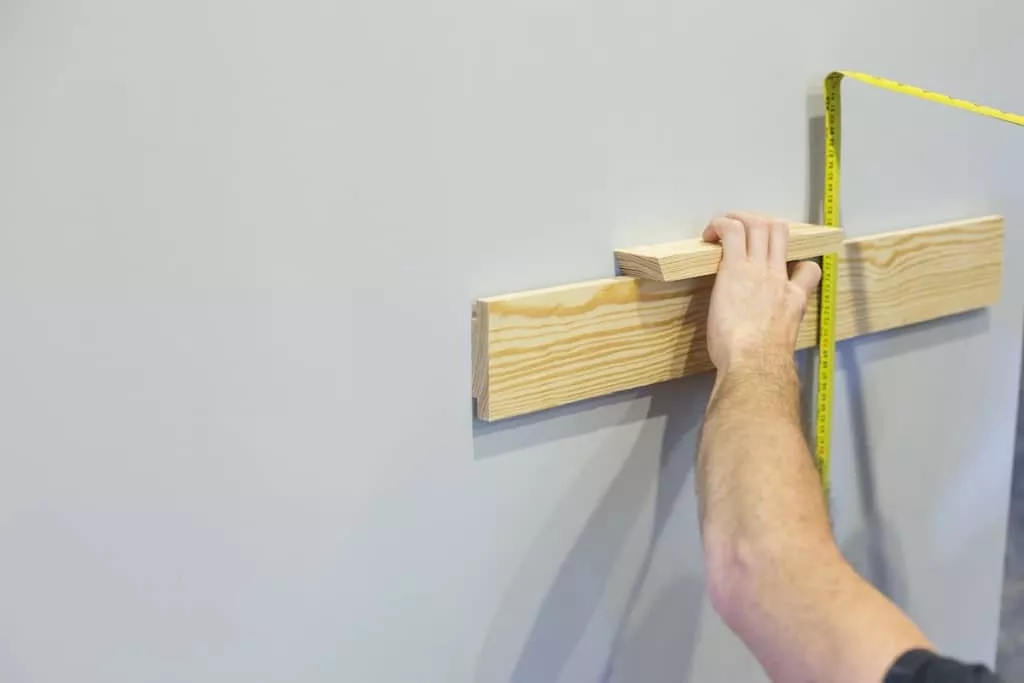

Step 4: Calculate Vertical Trim Width

To calculate the height of the vertical trim pieces, subtract the width of the top trim from the overall finished height of the wainscoting. Mark this height to the wall using a pencil, and then place the trim pieces on the mark to ensure the height is proportional to the space.

Install Wainscoting_Step 4 image

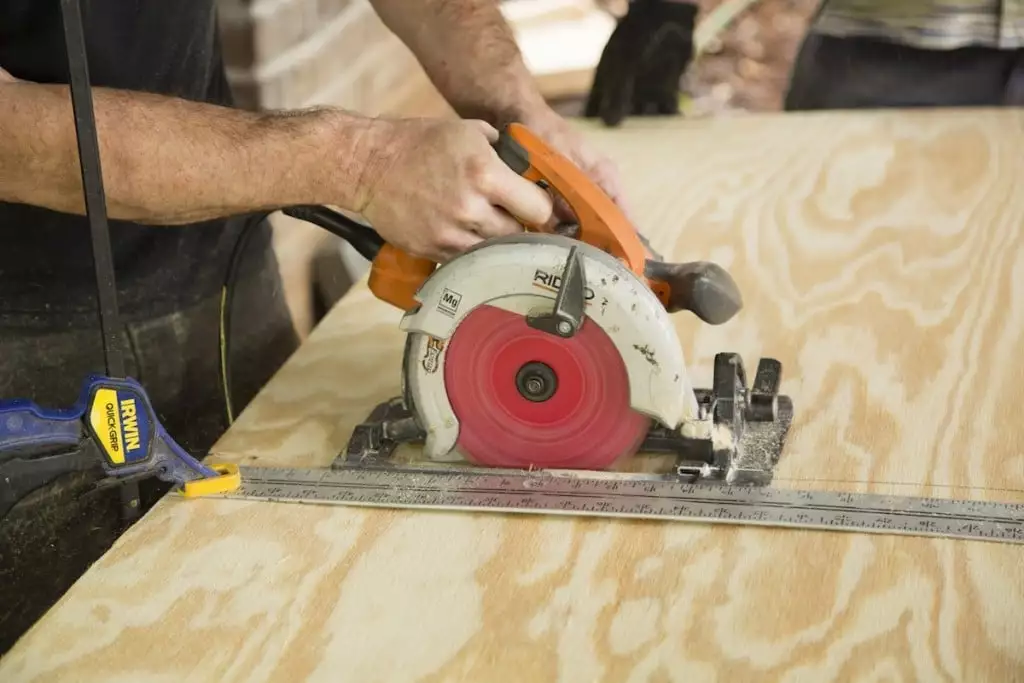

Step 5: Cut Back Panels to Size

To create the back panels, use a table or circular saw to cut standard 4’x8’ sheets of plywood to desired measurements. Plan cuts so that the trim pieces will hide any seams where two pieces of plywood join together.

Install Wainscoting_Step 5 image

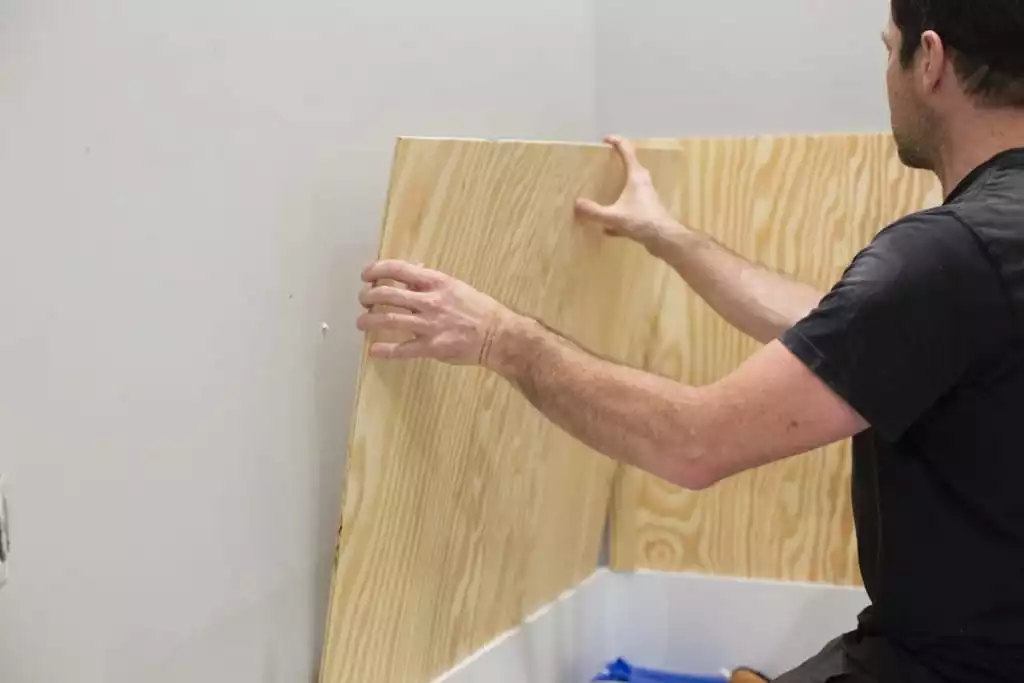

Step 6: Install Back Panels

To install the panels, either using a caulk gun or nail the panels to the wall studs. If using calk adhesive, apply the wood adhesive to the back of the previously cut plywood panels. Next, position each of the panels in place, slightly pressing them against the walls and adjusting them by hand until all four sides are perfectly aligned. To nail the boards to the studs, first find and mark the studs. Just as in step 8, a nail gun will make this quick and clean.

Install Wainscoting_Step 6 image

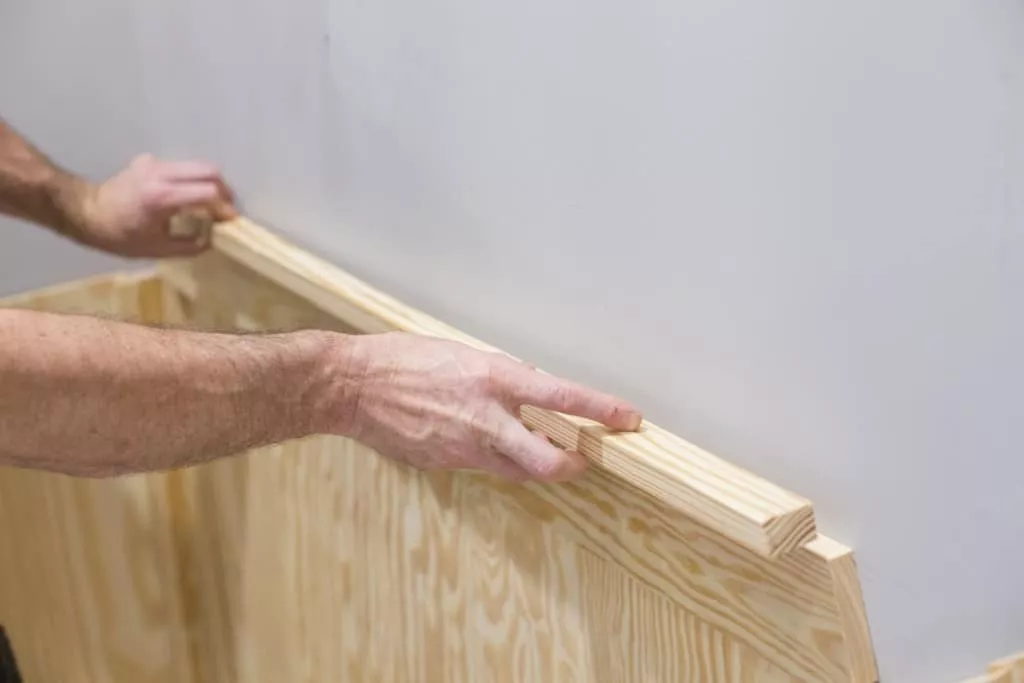

Step 7: Dry Fit Vertical and Horizontal Trim Pieces

Once the back panels are secure, cut horizontal and vertical pieces of trim to the desired measurement using a compound miter saw. Dry fit the pieces to the wall to ensure a snug fit.

Install Wainscoting_Step 7 image

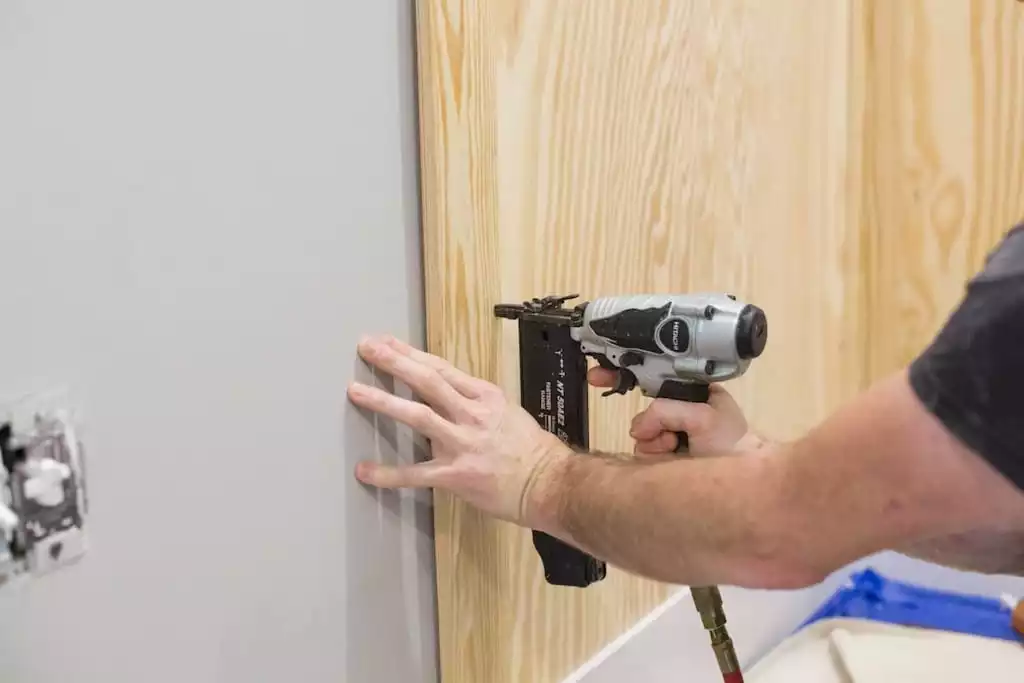

Step 8: Secure Trim to Wall

Using a nail gun, nail vertical trim pieces to the wall. Next, nail the horizontal trim pieces at desired intervals.

Install Wainscoting_Step 8 image

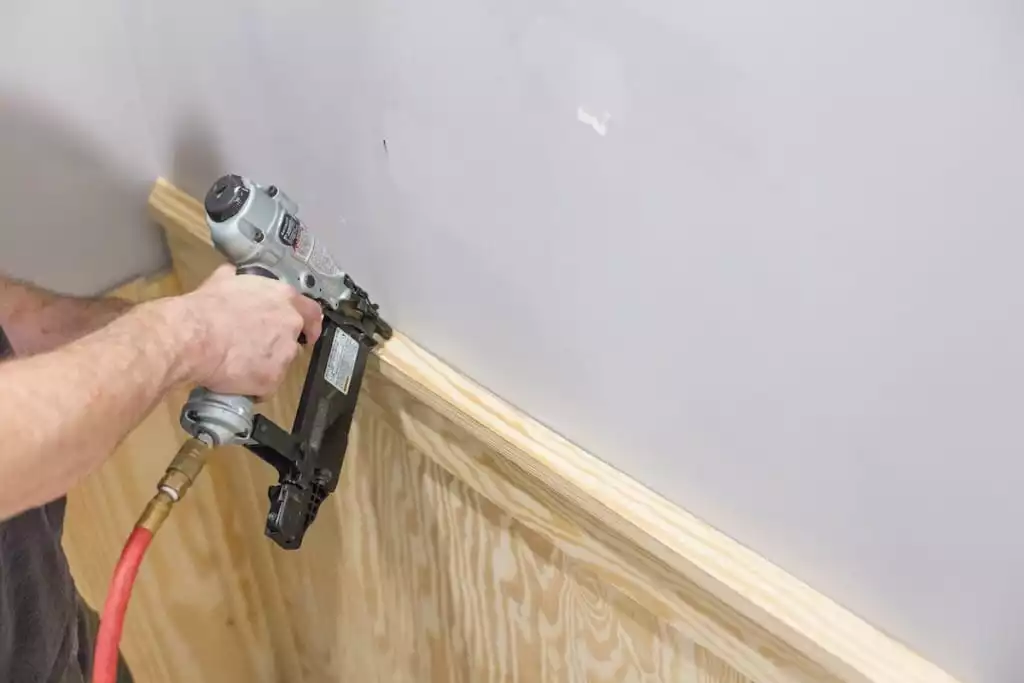

Step 9: Install Profile Trim

Attach a smaller profile piece of 1’x2’ trim to the top of the horizontal pieces to cover the gap where the plywood shows.

Install Wainscoting_Step 9 image

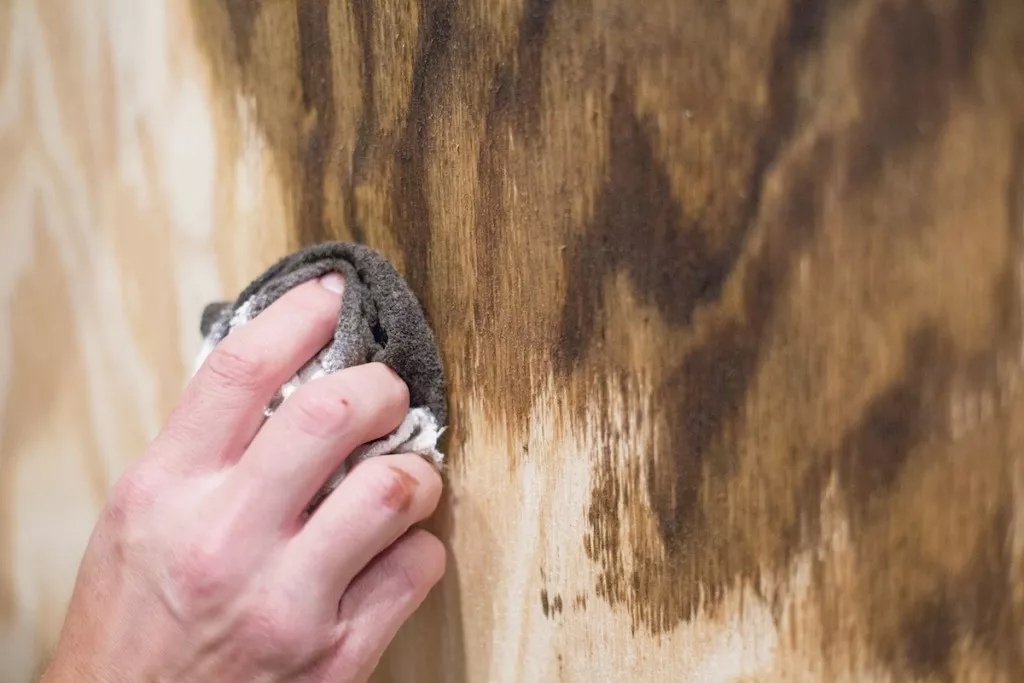

Step 10: Apply Finish

Select your preferred finish and make sure to stir, not shake, your product to prevent bubbles from forming. Wearing protective gloves and a ventilation mask, use a staining pad to evenly apply your preferred finish. Allow each coat to dry before reapplying stain or lacquer, depending on your desired look. And there you have it!

Install Wainscoting_Step 10 image

We’ve compiled a full list of materials you’ll need to install wainscoting here:

  • Measuring tape
  • Level
  • Pencil
  • Caulk gun
  • Finish nail gun
  • Compound miter saw
  • Table saw
  • Construction adhesive
  • Nails
  • Laser level
  • Hammer
  • Pry bar
  • 1’x4’ softwood lumber (we suggest cedar, redwood or pine)
  • 1’x2’ softwood lumber
  • ¼”x4‘x8‘ softwood-lumber sheets
  • 2-inch finish nails
  • Drop cloth
